G80 Multi-Directional Using Lifting Swivel

Inquire Now

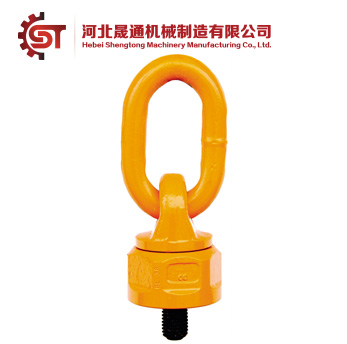

G80 MUTI-DIRECTIONAL USING LIFTING SWIVEL
Size	Dimensions(mm)							W.L.L.(t)		Weight(kg)
D x E	A	B	C	G	T	W	∅	90°	0°	Weight(kg)
M8x13	55	36	15.5	52	44	30	13	0.3	0.6	0.43
M10x19	55	36	15.5	52	44	30	13	0.45	0.9	0.45
M12x19	55	36	15.5	52	44	30	13	0.5	1	0.46
M16x20	55	36	15.5	52	44	30	13	1.12	2	0.48
M20x30	85	60	22.5	81	69	40	18	2	4	1.55
M22x30	85	60	22.5	81	69	40	18	2	4	1.56
M24x30	85	60	22.5	81	69	40	18	3.15	6.3	1.59
M27x35	85	60	22.5	81	69	40	18	3.15	6.3	1.61
M30x35	115	80	26.5	110	90	50	22	5.3	10.6	3.72
M30x50	115	80	26.5	110	90	50	22	8	11.8	3.75
M33x50	115	80	26.5	110	90	50	22	8	11.8	3.77
M36x54	115	80	26.5	110	90	50	22	8	11.8	3.81
M39x58	115	80	26.5	110	90	50	22	8	11.8	3.86
M42x63	115	80	26.5	110	90	50	22	10	15	3.88
M45x68	115	80	26.5	110	90	50	22	10	15	3.92
M48x68	115	80	26.5	110	90	50	22	10	15	3.95
M56x84	135	104	36.5	140	117	65	28	15	20	8.1
M60x90	135	104	36.5	140	117	65	28	15	20	8.85
M64x95	135	104	36.5	140	117	65	28	15	20	9
M72x108	150	125	48.5	331	166	80	40	25	-	22.8
M80x120	150	125	48.5	331	166	80	40	30	-	23.9
M90x135	-	-	-	-	-	-	-	35	-	25.9
